product Infomation
Product introduction
Digital Force Gauges
Mark-10 digital force gauges can be used in a virtually limitless number of tension and compression testing applications. All force gauges capture the peak force in both tension and compression, and have selectable units of measurement. Capacities are available from 50 gF full scale to 2,000 lbF. Gauges may be handheld or used with a force test stand and gripping fixtures to create a complete testing solution.
Compare force gauges
Compare force / torque indicators

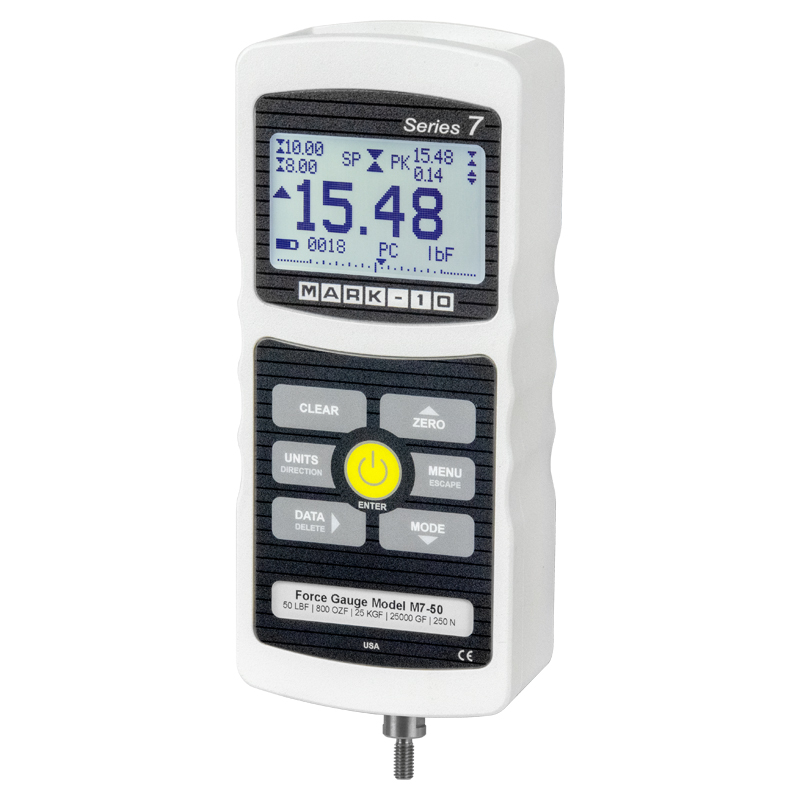

Series 7
- 14,000 Hz sampling rate
- NEW! 500 Hz max data output rate
- Continuous data capture with 5,000-data point buffer and bulk output
- Break detection
- Configurable footswitch functions
- ±0.1% accuracy

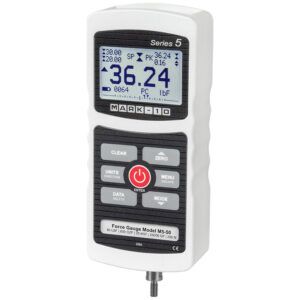

Series 5
- 7,000 Hz sampling rate
- NEW! 500 Hz max data output rate
- USB, RS-232, Mitutoyo, and analog outputs
- ±0.1% accuracy
- 1,000-point data memory and statistics
- Capacities to 2,000 lbF (10 kN)

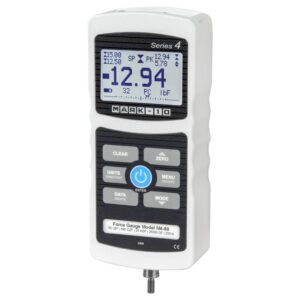

Series 4
- 3,000 Hz sampling rate
- USB, RS-232, Mitutoyo, and analog outputs
- ±0.2% accuracy
- 50-point data memory and statistics
- Reversible housing and display

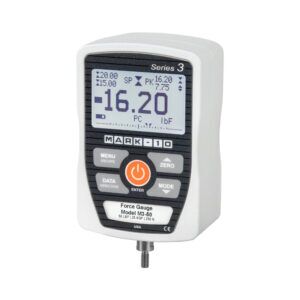

Series 3
- 2,000 Hz sampling rate
- Ultra-compact form factor
- USB output
- ±0.3% accuracy
- Reversible housing and display
